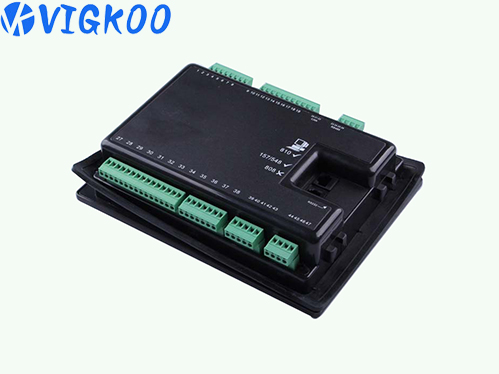

The DSE5220, Automatic Start Control Module offers an advanced range of engine monitoring and protection features. The module has been designed to monitor generator frequency, generator volts, generator current, engine oil pressure, engine coolant temperature, engine running hours and battery volts.
| Generator Controller Model DSE5220 | |
| Power Supply | 8 to 35V DC Continuous |
| Max Current | Operating 320mA at 12V, 215mA at 24V; Standby 175mA at 12V, 95mA at 24V |
| Start Relay Output: | 16 Amp DC at supply voltage. |
| Fuel Relay Output: | 16 Amp DC at supply voltage. |
| Auxiliary Relay Outputs: | 5 Amp DC at supply voltage. |
| Charge Fail / Excitation Range | 0 V to 35 V |
| Alternator Input Range: | 15V(ph-N) to 300V(ph-N) 3 Phase 4wire AC (+20%) |
| Alternator Input Frequency: | 50 - 60 Hz at rated engine speed (Minimum: 15V AC Ph-N) |
| Mains Supply Input Range: | 15V(ph-N) to 300(ph-N) 3 Phase 4wire AC (+20%) |
| Mains Supply Input Frequency: | 50 - 60 Hz at rated engine speed (Minimum: 15V AC Ph-N) |
| Magnetic Pick-up Voltage Input Range: | +/- 0.5 V to 70 V Peak |
| Magnetic Input Frequency: | 10,000Hz (max) at rated engine speed |
| Operating Temperature Range: | -30 to +70°C |
| Panel Cutout: | 220mm x 160mm ( 8.7" x 6.3") |
