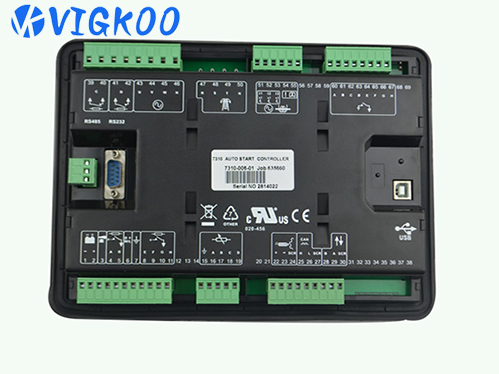

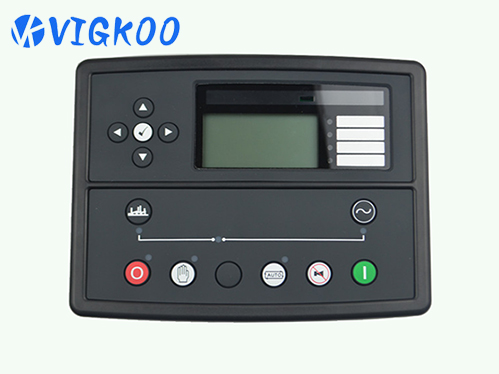

GENERATOR CONTROL MODULE DSE7310 MKII DEEP SEA 7310
|
DC SUPPLY |
|
CONTINUOUS VOLTAGE RATING |
8 V to 35 V Continuous |
CRANKING DROPOUTS |
Able to survive 0 V for 50 mS |
MAXIMUM OPERATING CURRENT |
340 mA at 12 V, 160 mA at 24 V |
MAXIMUM STANDBY CURRENT |
160 mA at 12 V,80 mA at 24 V |
MAXIMUM SLEEP CURRENT |
0-35V |
OUTPUTS |
|
OUTPUT A (FUEL) |
15 A short term, 5 A continuous,at supply voltage |
OUTPUT B (START) |
15 A short term, 5 A continuous,at supply voltage |
AUXILIARY OUTPUTS C,D |
2 A DC at supply voltage |
|
|
GENERATOR
|
|
VOLTAGE RANGE |
15 V to 415 V AC (Ph to N) 26 V to 719 V AC (Ph to Ph) |
FREQUENCY RANGE |
3.5 Hz to 75 Hz |
MAINS (UTILITY) DSE7320 ONLY |
|
VOLTAGE RANGE |
15 V to 415 V AC (Ph to N) 26 V to 719 V AC (Ph to Ph) |
FREQUENCY RANGE |
3.5 Hz to 75 Hz |
DIMENSIONS |
|
OVERALL |
240 mm x 181 mm x 42 mm |
PANEL CUT-OUT |
220 mm x160 mm |
MAXIMUM PANEL THICKNESS |
8 mm |
-
-
Diesel generator, Open Type, Canopy Type, Trailer Type, Marine, Land Use
