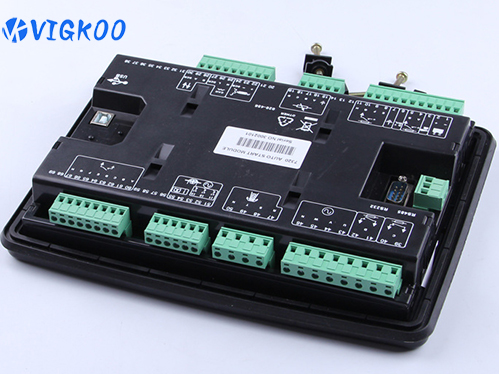

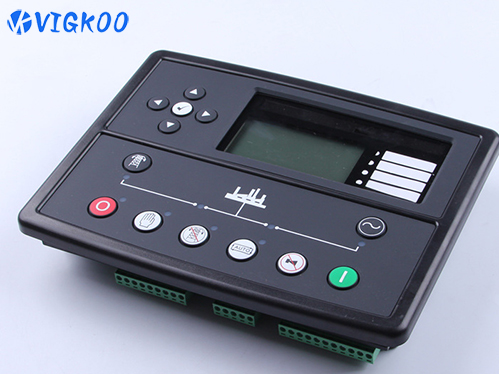

DSE7320 is an Auto Mains (Utility) Failure Control Module suitable for a wide variety of single, diesel or gas, gen-set applications.
|
GENERATOR CONTROL MODULE DSE7320 |
|
| Power Supply | 8 to 35 Vdc Continuous |
| Dropouts: | Able to survive 0 V for 50mS, providing supply was at least |
| 10V before dropout and supply recovers to 5V without the | |
| Need for internal batteries. | |
| Max Current | Operating 340 mA at 12 V, 160 mA at 24 V; |
| Standby 160 mA at 12 V, 80 mA at 24 V 24V | |
| Start Output: | 15 A DC at supply voltage |
| Fuel Output: | 15 A DC at supply voltage |
| Auxiliary Relay Outputs: | 2 A DC at supply voltage |
| Charge Fail / Excitation Range | 0 V to 35 V |
| Alternator Input Range: | 15 V - 333 V AC (L-N) |
| Alternator Input Frequency: | 3.5 Hz to 75 Hz |
| Mains Supply Input Range: | 15 V - 333 V AC (L-N) |
| Mains Supply Input Frequency: | 3.5 Hz to 75 Hz |
| Magnetic Pick-up Voltage Input Range: | +/- 0.5 V to 70 V |
| Magnetic Input Frequency: | 10,000 Hz (max) |
| Operating Temperature Range: | -30 to +70°C |
| Panel Cutout: | 220mm x 160mm ( 8.7" x 6.3") |
